Materials science lab equipment rotation vacuum sealing machine for quartz tube
Home > Products > Oxy Hydrogen Generator > Oxyhydrogen Quartz Ampoule Sealing Machine > Rotation tube holding device vacuum sealing machine for one-three workstation quartz tubes

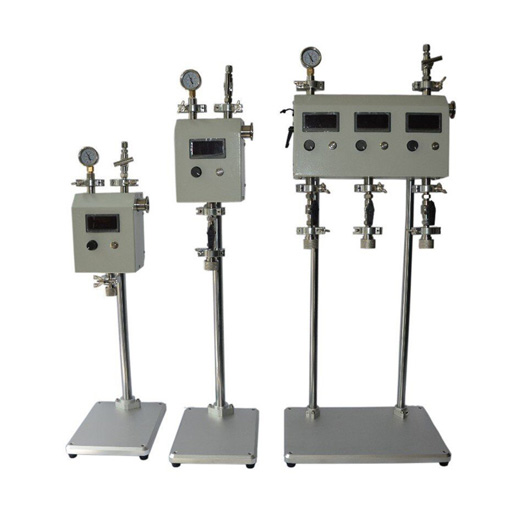

tube holding device vacuum sealing machine for quartz tube

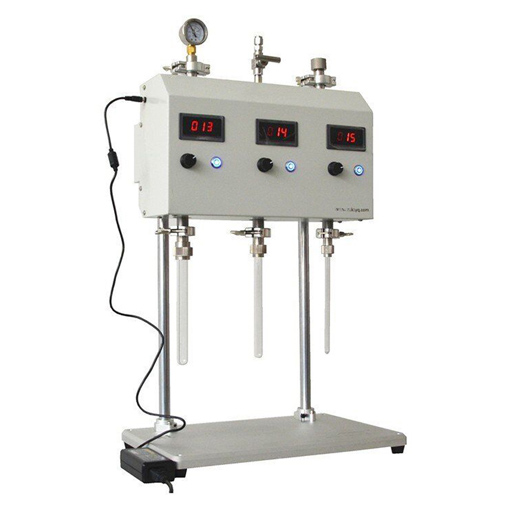

quartz glass tubing machine
tube holding device vacuum sealing machine for quartz tube
quartz glass tubing machine

Rotation tube holding device vacuum sealing machine for one-three workstation quartz tubes

Using dynamic sealing technology to automatically rotary and hold quartz scientific glass with vacuum or argon backfill to prevent sample oxidation. You can chooe oxygen/propane or oxyhydrogen flame torch to melt glass tube. Different size of glass tube clamps can be supplied with your demand.
Model Number TX-Q30 quartz tube vacuum sealing machine
The number of workstation 1-3 workstations
Rotation Speed 0-20r/min
Leakage Rate ≦2x10-6Pa·m3/S
Diameter of Glass Tube φ8~ 45
Wall Thickness of Glass Tube ≤2mm
Share:
Brief Introduction

The quartz tube sealing machine is a dedicated tube holding rotation device that matches oxyhydrogen generator. It is to use dynamic sealing technology to automatically rotary the quartz glass tube,and simultaneously vacuum and inflate to keep the air sensitive samples in the tube under the condition of free-oxygen and free-water. Using oxygen/propane or oxyhydrogen flame torch,it can seal metal samples with vacuum or argon backfill to prevent sample oxidation.It is also the most reliable method of preserving valuable samples for NMR.

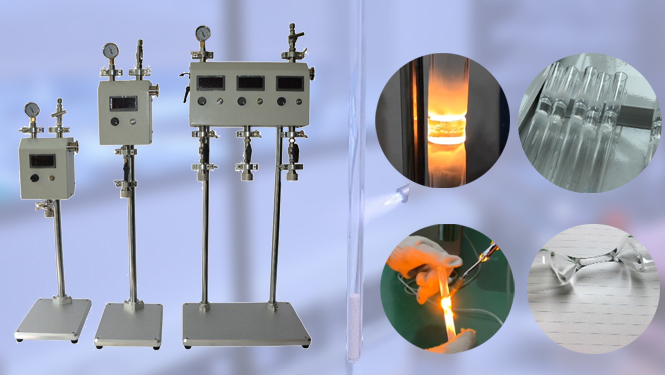

oxyhydrogen scientific glass vacuum sealing machine
Product Advantage
01
2800 celsius degrees oxyhydrogen flame
02
Digital display rotation speed
03
Plug sealing method
04
Pull sealing method
05
Multiple sizes of glass clamps
Welcome your inquiry
We will provide you with quality service and guarantee
Technical Parameter
Product Name:  TX-Q30 one-three workstations quartz vacuum sealing machine
Input Voltage: 220V
Rotation Speed: 1-20rpm
Vacuum Connection: KF25
Air Escape Valve: KF16
Protective Gas Inlet: 6mm ferrule joint
Rotating Speed: 0-20r/min
External Diameter of Sealing Tube:  8-45mm
Wall Thickness ≤2mm
The Length of Glass Tube 500mm
Sealing Method: pull sealing, plug sealing
Vacuum Leakage Rate: ≦2×10-6Pa·m3/S
Standard Accessories: KF25 vacuum baffle valve *1pcs; KF25 corrugated pipe *1 pcs;KF16 vent valve *1 pcs; KF16 vacuum mechanical pressure gauge *1pcs; Flame torch holder*1pcs; polarizers*1pair; high-temperature gloves*1pair; quartz glass clamp*1pcs; KF16 clamp *1pcs; KF25 clamp *2pcs; φ 6mm intake pipe *3 meters; power adapters*1pcs



Product Feature
Concentrated oxyhydrogen flame
Working pressure less than 0.2Mpa
Quartz sealing under vacuum
Easy operation

Functional Characteristics

  • It is easy to operate and suitable for different diameter and length of quartz tube.
  • The glass tube clamp Ф10,Ф12,Ф14,Ф16,Ф18,Ф20,Ф22mm, and customized are available as per customers’ tube size.
  • Inflation inlet and exhaust port can realize the function of filling the inert gas in the glass tube
  • Optional ground or desktop type molecular pump is designed independently, the overall vacuum system can achieve a vacuum degree of ≤ 5×10-5Pa.
  • Multiple workstations require the installation of multiple glass tubes. If the multi-station sealing machine only uses one workstation, the excess workstations need to be sealed with blind plates and clamps before use.
  • Adopting a self-designed vacuum diverter valve, it can more accurately control the pumping rate, effectively place the powder into the vacuum pump, and effectively protect the service life of the vacuum pump or molecular pump.



Related Products

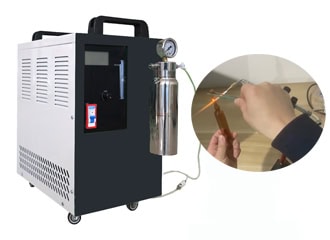

Oxy-hydrogen glass ampoule sealing torch machine manual type
Oxyhydrogen flame generator use water and electricity to produce hydrogen and oxygen gas.
1-3 workstations quartz tube vacuum sealing machine system with molecular vacuum pump
The set of equipment consists of the high vacuum rotary sealing system, the high vacuum pipeline, air inlet, air bleed port, vent valve, and flange of glass tube. The molecular pump vacuum system is a clean high vacuum acquisition device. This device is a vacuum acquisition system based on the principle of vacuum knowledge, utilizing a combination of mechanical pumps and turbomolecular pumps.
Single station quartz glass vacuum sealing machine system for material samples
We independently developed quartz glass tube vacuum sealing system,which is simple and convenient to operate, It uses a unique rotating sealing flange to adjust the sealing speed of the test tube. At the same time, it can be sealed without manually rotating the test tube, greatly improving the sealing efficiency of the test tube.

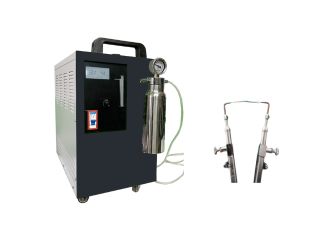

Ampoule Glass Tube Sealing Machine Movable Type
