The machine uses SPE electrolysis technology to send directly purified water into the cathode chamber of the electrolysis tank, and after electrification, the anode cathode passes through a wet diaphragm to electrolyze the water. Under the action of electric field force, water is decomposed into four positively charged H and two oxygen with – 2 valence at the anode. The decomposed negative oxygen ions then emit electrons at the anode, forming oxygen and some water vapor, which are discharged from the anode. Hydrogen ions, in the form of hydrated protons, pass through the proton membrane under the action of electric field force, reach the cathode to absorb electrons and form hydrogen gas. After being discharged from the cathode chamber, they enter the water and generate hydrogen rich water.
The advantage of SPE electrolytic hydrogen water production technology is that the stable electrochemical reaction and no harmful substances.

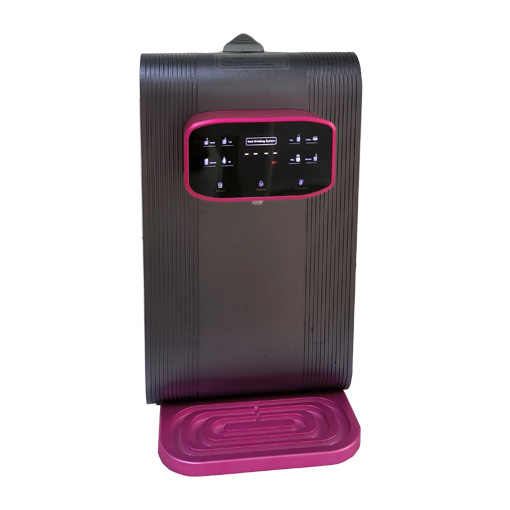

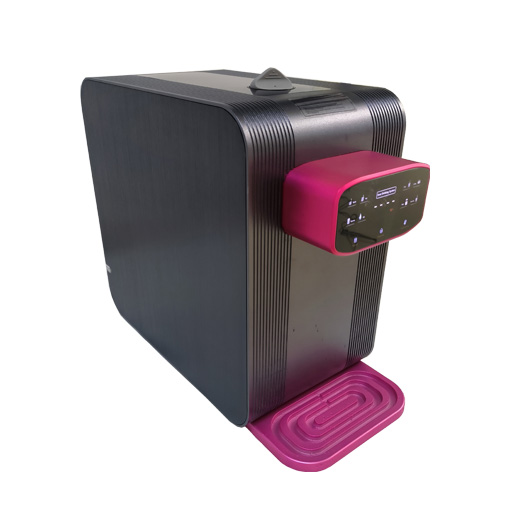

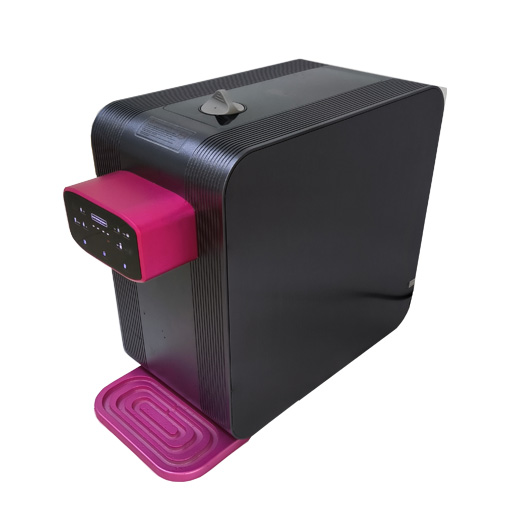

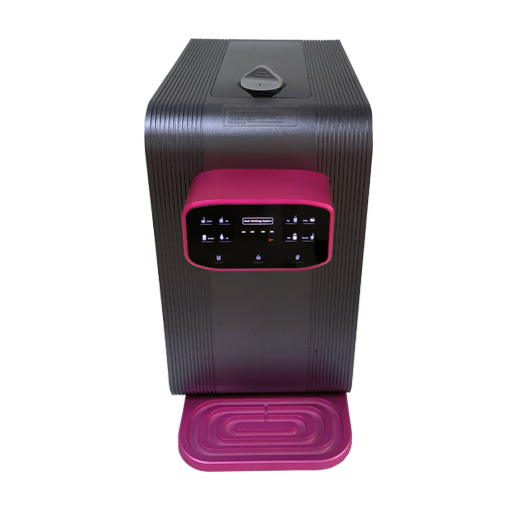

| Model | TX-HW500 |
| Electrolysis Method | imported proton membrane+platinum titanium electrode |
| Shell Material | anodized aerospace aluminum |
| Water Required | purified water or distilled water |
| Hydrogen Water Output | small/tall/grande |
| Hydrogen Concentration | >4000ppb |
| Temperature regulation | small/tall/grande |
| Water Tank | hydrogen production tank |
| Dimension | 205*438*350mm |
| Gross Weight | 16.5kg |
Product Feature
Hydrogen production technology using pure water electrolysis cell.
Frequency conversion fast heating technology in 3seconds.
Lightweight and luxurious design of aluminum alloy shell.
Four level water temperature regulation and instant water dispense.
High temperature hydrogen locking technology. Hot water also contains hydrogen.
Installation free and small size design, which is suitable for living rooms, bedrooms, offices, etc
