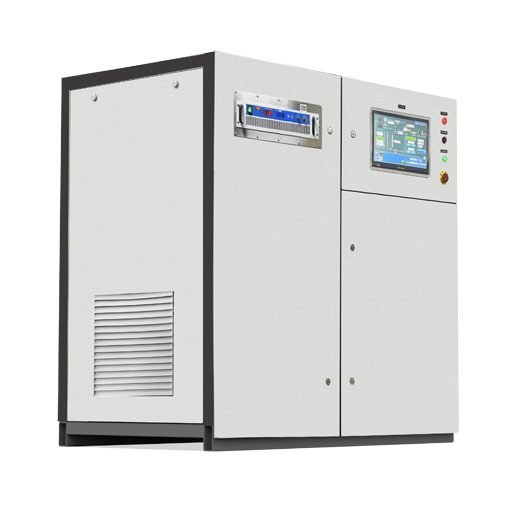

PEM solar powered hydrogen generator

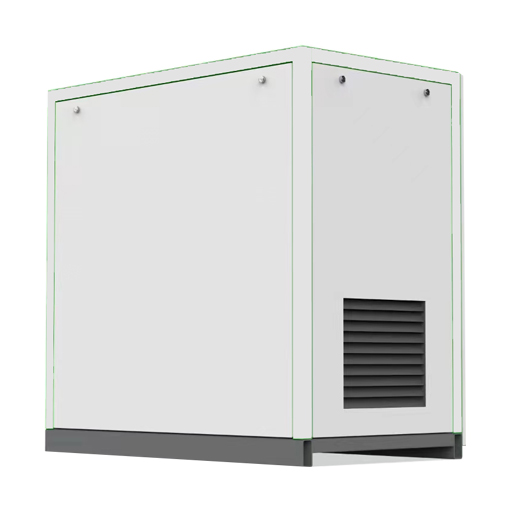

pem hydrogen electrolyzer hydrogen generator
pem hydrogen generating equipment 99.999%
PEM solar powered hydrogen generator
pem hydrogen electrolyzer hydrogen generator

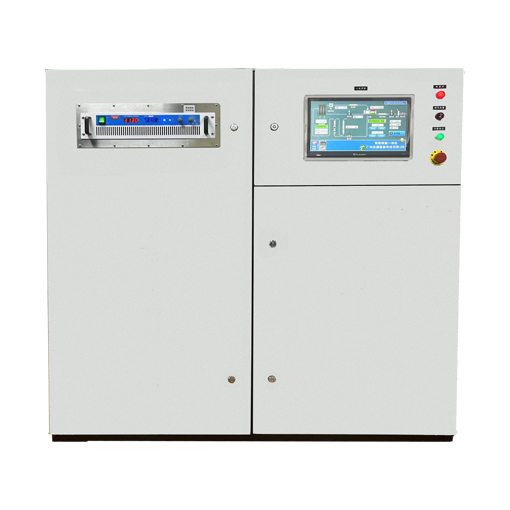

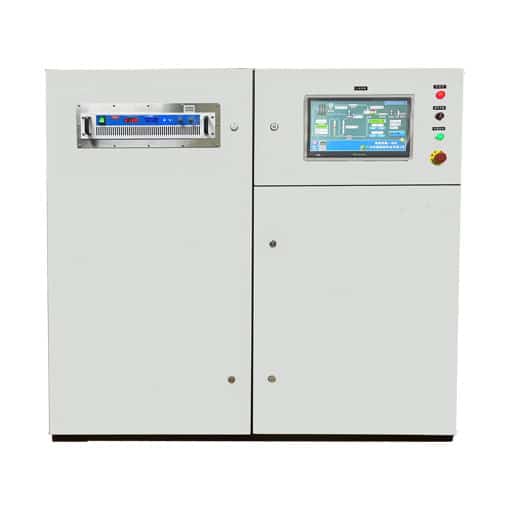

PEM wind solar powered hydrogen generator equipment 25Nm3/h for power generation

25Nm3/h PEM solar powered hydrogen generator produces high purity of hydrogen 99.999% and a dew point -65°C. It has strong load adaptability with hydrogen production continuously adjustable between 0-120% and offers a quick response to load changes.

Hydrogen Production Rate: 25Nm3/h
Hydrogen Purity: 99.999%
H2 Pressure: 0.1-3.5Mpa
Water Requirement: >2M Ω deionized water or distilled water
Power Consumption: 4.3KW/Nm3
Dew Point: -65°
Maximum Water Consumption: 20-25L/h
Cabinet Size: 1500*1200*1800mm
Share:

Brief Introduction

PEM hydrogen generator equipment is specifically designed to handle high current densities with a compact electrolyzer size and flexible operating characteristics. This makes it particularly well-suited to the fluctuating and random nature of wind and solar power generation, demonstrating excellent compatibility.

  • Industrial-grade PEM electrolyzer
  • Stable and safe hydrogen output
  • High hydrogen purity 99.999%
  • Fast hydrogen production speed with high hydrogen concentration



PEM wind solar powered hydrogen generator equipment

Applied for

01
Wind solar powered hydrogen production
wind solar powered hydrogen production
02
Hydrogen fueling stations
hydrogen fueling station
03
Household photovoltaic power generation
Household photovoltaic power generation
04
Hydrogen application for chemical production
Hydrogen Applications for Chemical Production
05
Electronic semiconductor and polysilicon manufacturing
Electronic semiconductor and polysilicon manufacturing

Welcome your inquiry

We will provide you with quality service and guarantee

Technical Parameter

Model TX-SH25
Hydrogen Production Rate 25Nm³/h
Output Pressure 0.1-3.5Mpa
Hydrogen Purity 99.999%
Dew Point >-65°
Adjustable Flow Range 1-25Nm³
Water Requirement deionized water or distilled water
Power Consumption 4.3 kWh/Nm3
Constant Current Power Supply AC380V/DC220V 500A
Maximum Water Consumption 20-25L/H
Raw Water Tank 500L
Net Weight 4100KG
Integrated Cabinet Dimension(L*W*H) 1500*1200*1800mm

Unique Design

Strong adaptability to hydrogen production load
High adaptability to load with hydrogen production adjustable between 0–120%, enabling rapid response.
Accurate detection of hydrogen production
Equipped with single-cell voltage measurement to ensure consistency between cells and precise control of the hydrogen production system.
Safety and reliability
Features hydrogen leakage detection and comprehensive safety measures, including emergency stop and interlock protection in emergency situations.
High efficiency and energy saving
Supports both cold and hot starts with a hot standby mode, reducing energy consumption and increasing hydrogen production efficiency.

Functional Features

  • Ultra-Pure Hydrogen: The system produces hydrogen with a purity greater than 99.999% and a dew point -65°C.
  • Strong Adaptability: It has strong load adaptability with hydrogen production continuously adjustable between 0-120% and offers a quick response to load changes.
    High-Pressure Hydrogen Production: The hydrogen production pressure can reach up to 3.5 MPa.
  • Precise Monitoring: Equipped with single-cell voltage measurement technology, ensuring consistency among cells and precise monitoring of the hydrogen control system.
  • Cold/Hot Start Capability: Supports both cold and hot start with a thermal standby state, reducing energy consumption and increasing hydrogen production efficiency.
  • Stable Performance: Offers long service life, low operational temperatures, stable performance during extended operation, and minimal pressure fluctuation within the hydrogen system (less than 0.05 MPa).
  • Easy Installation: The product is highly integrated, safe, reliable, easy to operate, compact in size, and easy to install.
