PEM electrolytic cell is a device that requires specific conditions to operate normally. Compact design, matching, production process and operation can greatly extend the service life of the machine.
PEM electrolytic cell is a device that requires specific conditions to operate normally. Compact design, matching, production process and operation can greatly extend the service life of the machine. The service life of the electrolytic cell can reach 8000-10000 hours.
The performance and life of PEM electrolyzer are closely related to product design, assembly process, usage conditions, etc.
| Capacity | 1000ml/min |
| Voltage | 12V |
| Current | 26A |
| Number of plates | 5pcs |
| Water quality requirements | deionized water or distilled water |
| Dimension | 118*118*47mm |
Product Design
1. The DC constant current power supply should be matched with the current and voltage parameters of the electrolytic cell,otherwise the electrolytic cell will be damaged or the performance will not meet the standard, and the damage may not be recovered.
2.The direction of water pipe should be pay attention.Generally,water should enter from below and exit from the above.
3.The circuit connection of the positive and negative electrodes of the electrolytic cell shall be prevented from being reversed, otherwise the electrolytic cell will be burnt and damaged.
4.The pipeline connection shall have proper temperature resistance, pressure resistance and hydrolysis resistance to prevent leakage due to aging or falling off.
Using Tips
1.Use pure water,deionized water or distilled water for the machine.
2.The customer should be pay attention to the water level.It is forbidden to operate it for the shortage of water to prevent the electrolytic cell from damage.

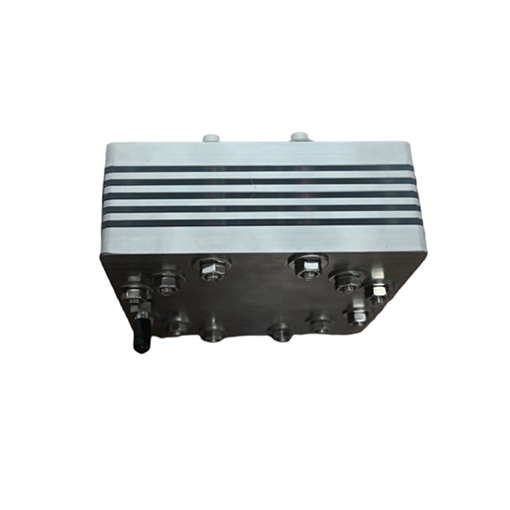

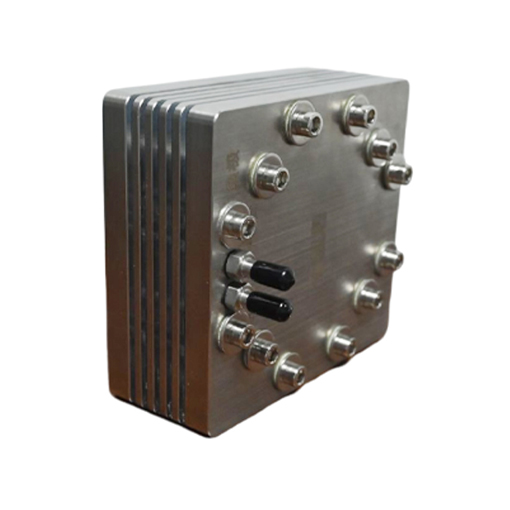

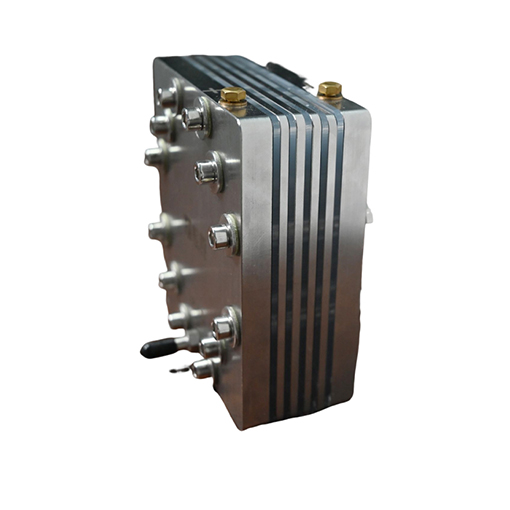

PEM electrolyzer cell is an advanced patented product, which is Low voltage and higher efficiency, energy-saving and of environmental protection , producing hydrogen and oxygen through the electrolysis of pure water (without adding alkali).
