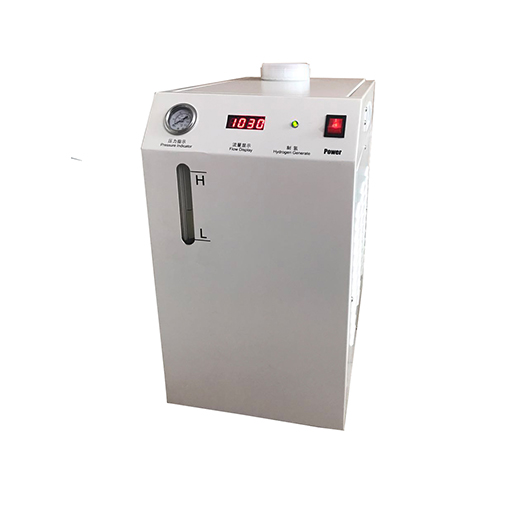

3000ml PEM hydrogen generator high purity stable flow
3000ml PEM hydrogen generator high purity stable flow
3000ml PEM hydrogen generator high purity stable flow
3000ml PEM hydrogen generator high purity stable flow

3000ml PEM hydrogen generator high purity stable flow

The 3000ml hydrogen generator has small light weight shape with the function of low-pressure gas production,high purity hydrogen output, and automatic tracking of hydrogen flow rate.

Production Rate: 0-3000ml/min
Display Mode: LED digital display
H2 Pressure: 0-0.6Mpa
Water Requirement: >2M Ω deionized water or distilled water
Core Technology: PEM electrolyzer
Dimension: 400*390*550mm
Weight: 40kg
Share:

Brief Introduction

The 3000ml hydrogen generator has small light weight shape with the function of low-pressure gas production,high purity hydrogen output, and automatic tracking of hydrogen flow rate. It is a on-site 24hours continuous gas supply to meet the safe and reliable requirement for laboratories.

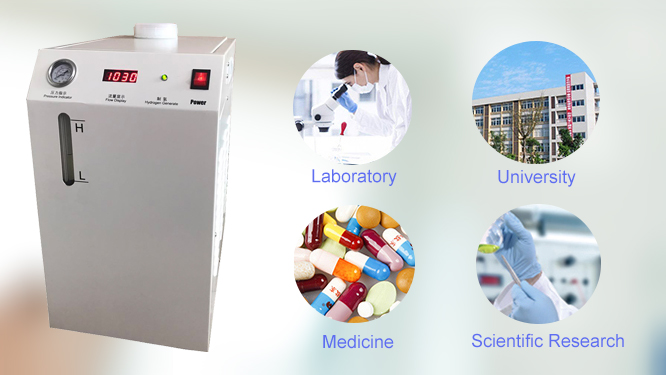

3000ml hydrogen generator

Detailed Display

01
Purifier
02
Flow display
03
Pressure guage

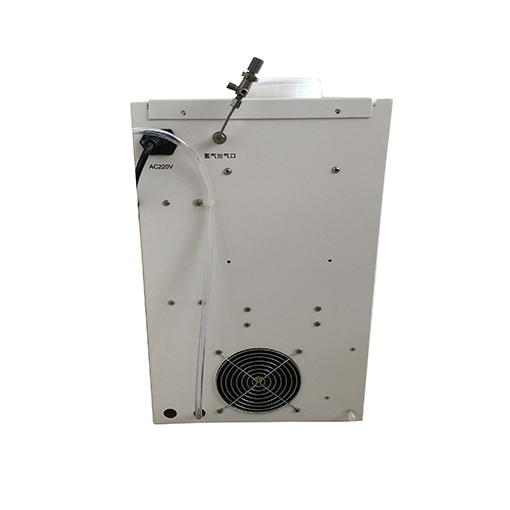

04
Back tuyere
05
Hydrogen outlet

Welcome your inquiry

We will provide you with quality service and guarantee

Technical Parameter

Model TX-3000
Output Pressure 0.6Mpa
Output Flow 0-3000ml/min
Water Requirement >2M Ω deionized water or distilled water
Purity >99.999%
Power 900W
Gross Weight 40KG
Dimension(L*W*H) 400*390*550mm

Unique Design

lab equipment
Lab usage
Safety
stable gas production
Stable gas production
effective electrolyzer cell
Effective electrolyzer cell

Functional Features
1.Equipped with low liquid level alarm system and overflow liquid device, which can effectively prevent the machine from damaging the electrolytic cell due to water shortage.
2.Adopting internationally advanced SPE electrolysis technology.
3.No need to add alkali, high sufficient gas production.
4.The membrane electrode is made of original imported polymer ion membranes from the United States.
5.Electrolytic cell is made of aviation titanium alloy material with iridium tantalum coating.
6.Microcomputer chip control the circuit to make pressure fluctuation less than 0.3%.
7.High automatically safety protection devices include air leakage, over-voltage, over-current, overheating, water shortage, fully automatic alarm protection system.
8.Hydrogen output flow is digital displayed.
9.5-10 years service life with stable gas production and no decay.

Related Products

Medium hydrogen generator 1000ml

Add qualified electrolytic water (resistivity ≥1M Ω/cm, deionized water or distilled water) into the anode chamber of the electrolytic cell.

Production Rate: 1000ml/min
Core Technology: PEM electrolyzer

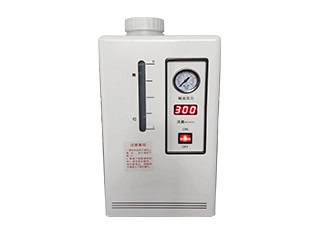

Small portable lab hydrogen generator 500ml

The pure hydrogen generator uses SPE technology to electrolyze pure water to produce high-purity hydrogen. It is a lightweight, efficient, energy-saving, and environmentally friendly high-tech patented gas generation equipment.

Production Rate: 500ml/min
Core Technology: PEM electrolyzer

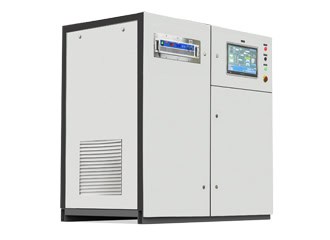

PEM wind solar powered hydrogen generator equipment 25Nm3/h for power generation
